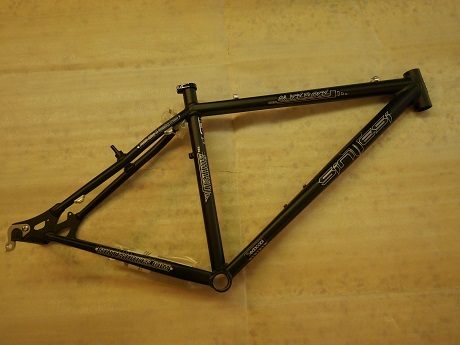

SINTESI SLICKROCK RAM 26" 18" 60 % CA 5650-

5650 SEK2260 SEK

Dedacciai 7003 aluminum frame. |
Size 18" Medium
CNC drop-out with I.S disc mount |
Color Matte Black ano.
5 sizes available |
1,600g (17")

2260 sek

Skicka förfrågan

3970 sek

Skicka förfrågan

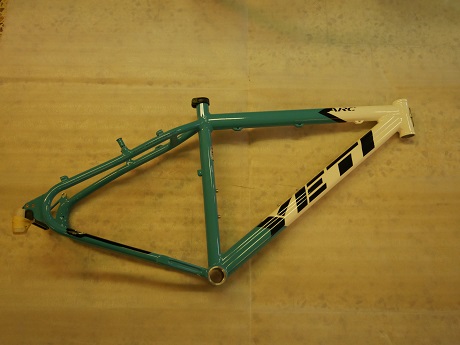

YETI ARC MTB RAM 26" 17,5" 45 % CA 7220-

7220 SEK3970 SEK

Frame ConstructionTIG-weldedFrame Tubing Material YETI Pure aluminum

Technical InformationHead Tube Diameter1 1/8"BB Shell Width73mm EnglishBrake MountDisc or cantileverRear Axle Spacing135mmDropout TypeVertical dropoutsWheel Size26" wheelsSeat Tube ID27.2mm

Size 17,5"

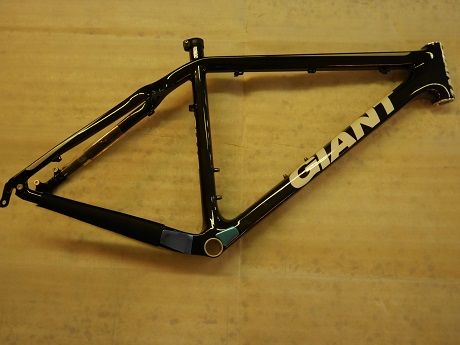

GIANT XTC CARBON ADVANCED SL 26" 48,5 % CA 16500-

16500 SEK8500 SEK

FRAME: Advanced SL-grade composite

- HEADSET: Integrated 1 1/8" sealed
cartridge bearing with composite spacers and top cap

- BOTTOM BRACKET SIZE: 68mm shell,
BB not included

- EXTRAS: Seat collar

- SIZES: LARGE

- COLOUR: Composite

- DISC BRAKE MOUNTS ONLY

XtC ADVANCED SL

8500 sek

Skicka förfrågan

3725 sek

Skicka förfrågan

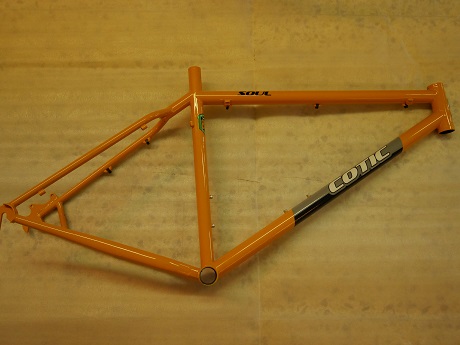

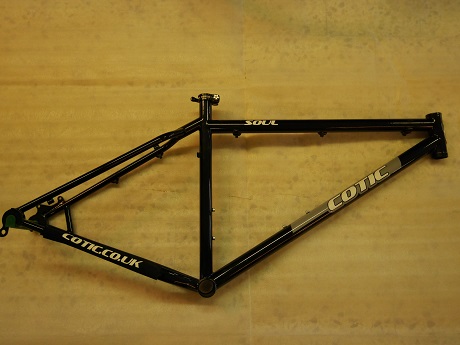

COTIC SOUL HT RAM 26" 35 % CA 5735-

5735 SEK3725 SEK

Frame Specifications

Reynolds 853 DZB down tube, top tube and Cotic 28,6mm seat tube combine with ultra compact frame layout for a supple yet precise ride feel
Cotic 1 1/8" head tube
4130 cromo wishbone stay rear end. Bridge-less S-bend chainstays with Cotic Hexten gussets for improved fatigue life and massive mud clearance
Superlight custom machined and pocketed dropouts with replaceable mech hanger
Geometry with commitment! Minimum 100mm travel forks, and handles great all the way up to 140mm travel
Seat clamp size 29,8 mm

Long top tube, short stem set up (60-90mm stems recommended) for super sharp steering whilst maintaining a comfortable day riding stretch
Sizes - 17.5" and 19". The frames are designed to be compact and chuckable
Weight - 4.4lbs for the 17.5"
Medium 17,5 black
Large 19" mustard

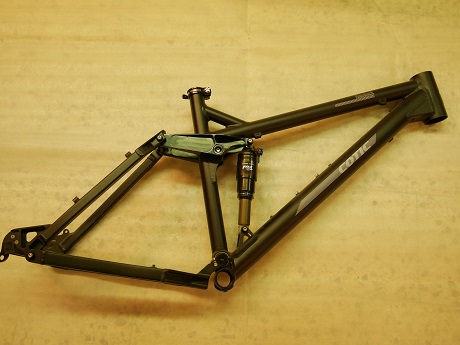

COTIC HEMLOCK FS RAM 26" 45 % CA 13195-

13195 SEK7255 SEK

Custom 7005-T6 and 7046-T6 Aluminium tubing.
Fox RP23 Boost Valve long stroke shock. Simply outstanding.
Super-compact frame layout and low stack front end for maximum room to move, and full length seat tube for hassle free saddle height adjustment.
Fully sealed standard cartridge bearings in all pivots. Frame fitted main pivot bearings with massive 15mm axle make for maximum accuracy and protection. Double sided chainstay bearings for increased stiffness and bearing life.
Machined swingarm heads and torsion box cross brace with a sloped, mud shedding design maximise stiffness and offer huge mud clearance for up to 2.4" tyres.
One piece dropout/disc mount, with overhead disc mount location to ease wheel insertion and minimise braking effects.
Long or short travel options available.
Geometry for 130-160mm travel forks.
Sizes - medium
Weight - 6.7lbs for the medium
Rockers, länkarmar för 150 mm slag ingår i priset, std. monterade korta 120 mm

Rear: The frame has two rocker link options: 120mm (short) or 150mm (long) travel. Both maintain the same frame geometry at ride height with 20% (12mm) shock sag. Each rocker offers a subtly different shock rate, with the short travel option having a rising rate to prevent excessive bottoming out, whereas the long travel is more linear with a fantastic open mid-stroke for control and stability.

The frame features a super low slung top tube, keeping the ride tight and chuckable. Standover clearance is even lower than our famously compact hardtails for extra room to move, and the massive 1.5 Standard head tube is intended for use with an internal headset (such as Hope's Reducer Low Stack, or the Cane Creek Double Flush XC) to keep the bars low and weight forward. Adoption of the 1.5 standard also allows the fitting of external headsets for 0.5 degree slacker angles, or tapered E2 steerer forks so your frame is completely futureproof.
